POOFKBOOM

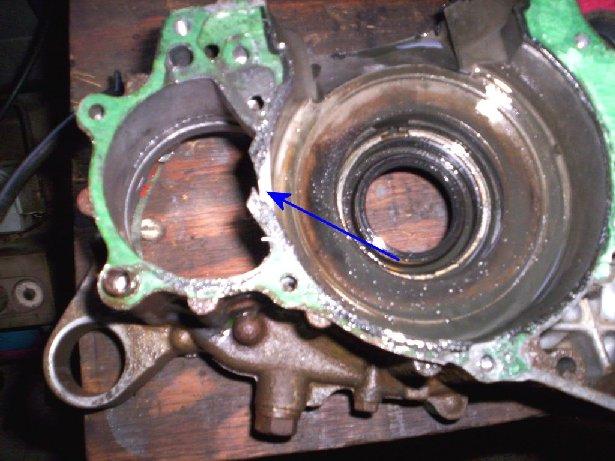

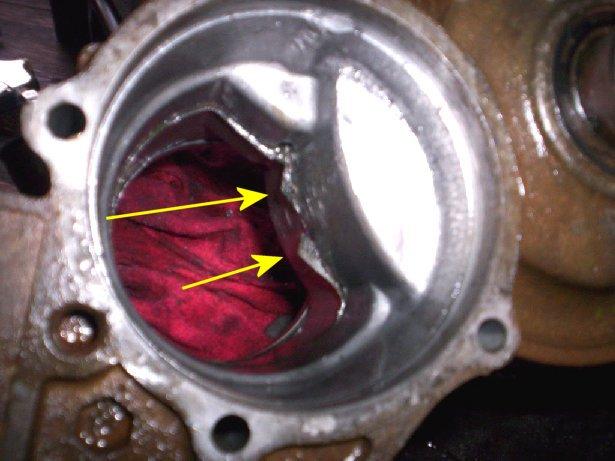

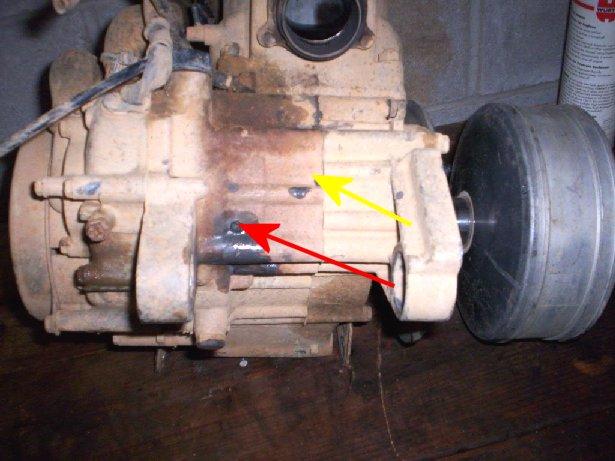

I need a used right case and possibly right side cover.

EDIT: More detailed FL400 Pilot water pump info found here viewtopic.php?f=1&t=8912

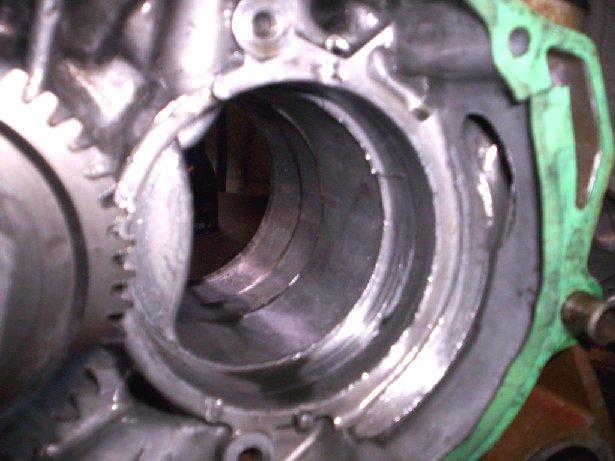

Damn Stoneman, that looks nasty. I snapped an axle today. I hear bad things happen in 3s. I wonder whos next.

This is gonna hurt.


Part Number Description List Price Your Price

19241-HE0-000 SHAFT, WATER PUMP $37.29 $27.28
11340-HE0-000 COVER, R. CRANKCASE $215.76 $157.83
11100-HE0-000 CRANKCASE, R. $279.73 $184.65
13350-HE0-000 WEIGHT (43T) $203.98 $149.21
13355-HE0-000 GEAR (43T) $93.75 $68.57
19215-KA3-710 IMPELLER, WATER PUMP $37.56 $27.48
19217-PA5-003 SEAL, MECHANICAL $61.07 $38.58
91001-KA4-003 BEARING (12X28X7) $11.18 $8.49
91201-148-003 OIL SEAL (12X22X5) $3.29 $2.5
91201-402-015 OIL SEAL (35X52X7) $8.51 $6.46
91002-HE0-004 BEARING (S6205) $13.18 $10.01
91032-HE0-005 BEARING (6306) (C3) $36.96 $27.04
91033-HE0-005 BEARING (S6306 C3) $36.96 $27.04
91203-HE0-003 OIL SEAL (42X65X11) $11.36 $8.63
91204-HE0-003 OIL SEAL (30X45X8) $9.07 $6.89


Totals : $1059.65 $750.66


On another note is it possible that that gasket failed? And not installed correctly.

did the case get welded up or did it get replaced on this, My son broke a piston that intern broke the case in several spots, I figure if I can weld on the space shuttle the Engine case was a breeze. We re machined both cases put it together with a lot of new seals and bearings had the cylinder done up to match the new piston and she is ready to put in. Just put 240 Ml in the balancer and going to install after dinner. I know this is a old thread just wonderd if they did what I did or replaced. I found the cases to be the easiest thing on the whole darn pilot to weld to! The steel is absolutely crap to weld on, the cases easy go figure lol

Were the heck is Stoneman? In the shed in the backyard? He has not posted anything here in a long time.

Milking the goats?
