SOMETHING TO NOTE BEFORE PERFOMRING THIS MOD: After performing this mod, you'll have the unfortunate ability to accidently hit the "start" button, activating the starter motor (( Internal Combustion Engine ? )) while in gear and/or while moving. This could damage your starter or possibly worse. So remember not to hit the start button when the motor (( Internal Combustion Engine ? )) is already running :)

We seem to take a lot of really short breaks out on the dunes, and I'm tired of having to go back to neutral everytime I restart. So I checked the wiring diagram and decided to make a minor modification so I can start in gear. Obviously, this can be dangerous, so always remember to use your fully functional e-brake.

** - I'm confident this is already documented here somewhere, because it seems like Hoser has covered every tweak, trick, shortcut, and "secret squirrel" modification that anyone could possibly want, but since I wasn't able to find it, here's my version. I found a post or two that described a similar method, but I prefer this one as it doesn't affect the functionality of the indicator lights in the steering wheel. And no cutting of the stock wiring is required! Here goes:

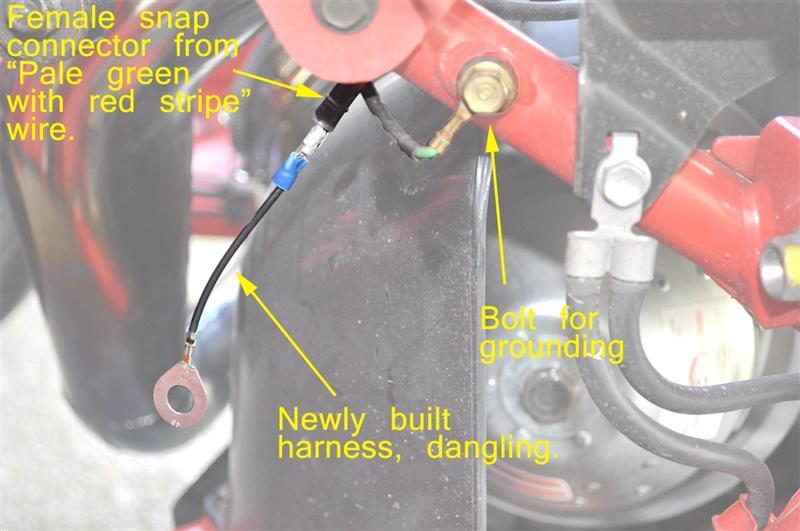

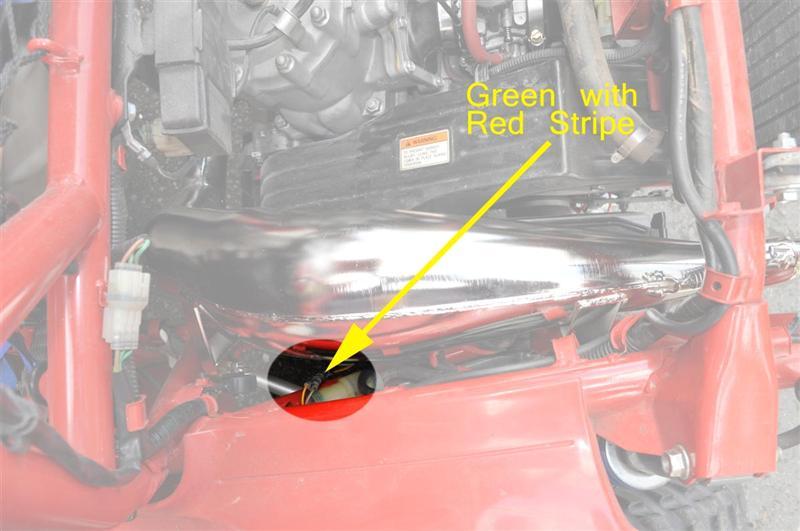

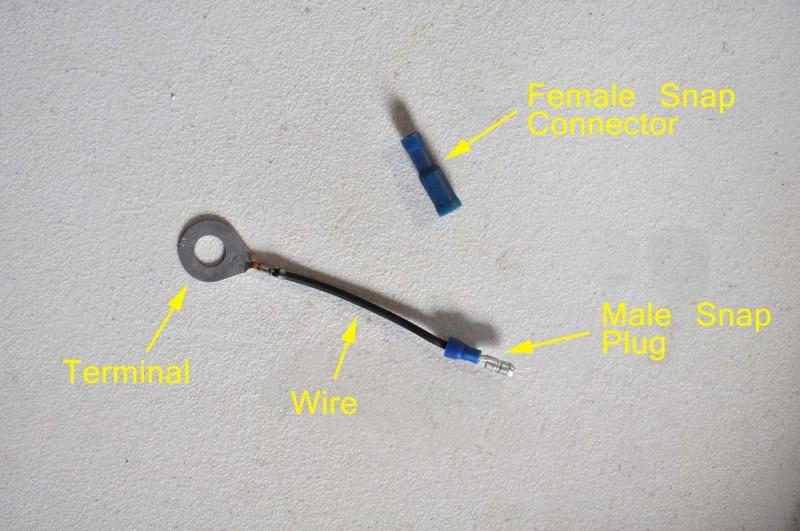

Here's what you'll need: 1 female snap connector, 1 male snap plug, 1 terminal, 1 short piece of wiring (see pic). Build the small "harness" as shown in the attached. Locate the "pale green with red stripe" wire and pull it apart at the snap connector. Plug your newly built harness into the Pilot's female snap connector and let the wire dangle a bit towards the ground between the pipe and the frame, and ground it to the bolt, as shown.

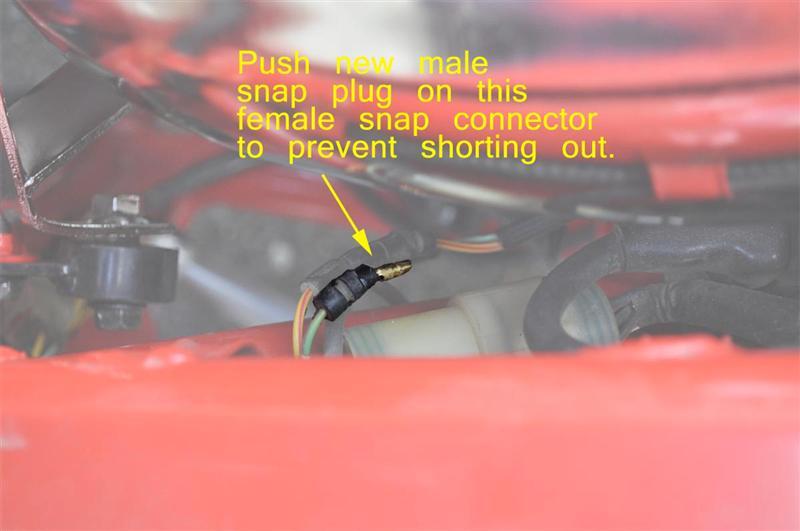

Now take the new female connector and push it over the male snap plug on the Pilot. This will keep the stock wire from accidently shorting out. Even in the event of shorting this wire, it would simply make your neutral light flicker, so no biggy, but you might as well cover it while you're there.

Add a few zip ties to button it all up, and you're done. Just don't forget to use your e-brake.

Very well documented.

Never seen that one before looks good thanks for sharing.

Can you post each individual file so they are larger?

Sure! I had a bit of difficulty figuring out how to post the pics while maintaining the "install" order. I'll try it again with larger images.

EDIT: For some dang reason, my stupid JPGs kept choosing their own order of appearance, regardless of how I uploaded them. Eventually, I changed the quality and size of the JPG's to get them to sort properly. No. 5 and 6 would spring to the top no matter what I did. But I finally got it in the end.

When you add the pics as attachments just start with your number 1 pic then 2 and so on it will display them in that order, if you add pic 6 first it will be at the top of the list

Nice work what software did you use to fade out picture and only show the spot that you wanted

Thanks for sharing

SpeedChaser

I used photoshop on the pictures. If you have it, this effect is rather easy. I can walk you through it if you have photoshop and you're interested!

Thank you for a great detailed post! Does anyone know what wire I would want to tap into to have a yellow light in the rear come on when ever the key is on... WITHOUT dighging into the keyswitch in dash???
It is required and comes in handy when track is dusty? I will use an LED light so the draw won't be much...

Looking at the electrical diagram, the most convenient wire for you is at the reverse light. When the ignition switch is turned on, power is routed to the reverse light. Of course, the reverse light itself doesn't turn on until the transmission is put into gear via a ground activated switch in the tranny, but the +12V power to the light itself is always on as long as the key is turned.

The reverse light has two wires going to it. The gray wire is the switching ground from the transmission, the other wire is a +12V from the ignition switch. Tap this other wire for power for your light, and then ground your light to the chassis. The +12V at the reverse light is listed as a black wire on the wiring diagram. I'm pretty sure you should be fine if you're using low current LED's. If you were using a regular light, you may have needed to wire in a small relay.

However, since this is terribly counter-intuitive (a black wire is +12V on a vehicle?) I'll double check it next time I'm out at the shop. You could also check it yourself with your volt meter.

Thespazardman

Look at the wiring harness from the area of the CDI (Capacitor Discharge Ignition) up to the brake light some place in the harness their is a plug I think its by the mount for the flag you can plug into it their I think it was power for a lighted flag, it under the black tape you will have to unwrap it, its just a little female harness plug.

I will look at mine tomorrow and see if I can find it and take a pic.

You will want the dust light mounted high, you might want to install two of them in case one fails, getting hit from behind at speed is not a good thing.

Something to be careful of, Special Ed recently had an accident starting the Engine in his Taz Car while it was in gear, he was beside it reaching in to start it, it took off and ran over him, he sustained some pretty sever injuries and wound up having an operation that fused several disks in his back. He told me he nearly wound up as a quadraplegic.

If you care about your health, this is one mod you may want to skip.
