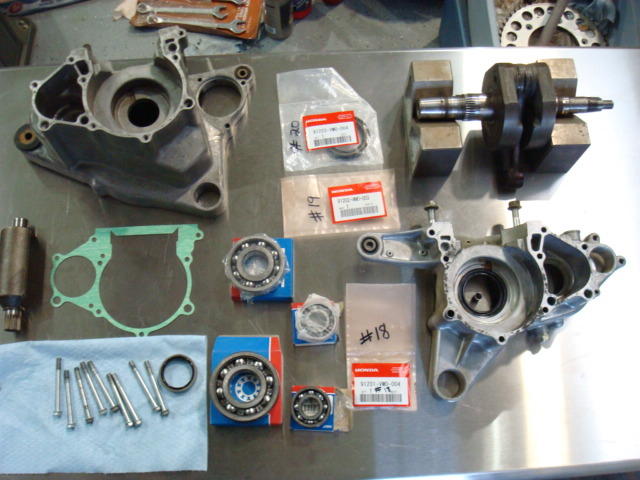

From reading posts on this board and others, it seems that a lot of people are reluctant to do a bottom end rebuild for the first time. I actually think the bottom end rebuild is easier and more straight forward than the top end. I did two bottom end rebuilds on my FL350 motors this weekend. After I did the first one I decided to photo document the second to show how easy it actually is. The only special tools I used was a seal driver that you can pick up at Harbor Freight tools for about $10.00.

Hmm. when I previewed my post the pics and comments were in the correct order, now that it is posted it is reversed. What gives?

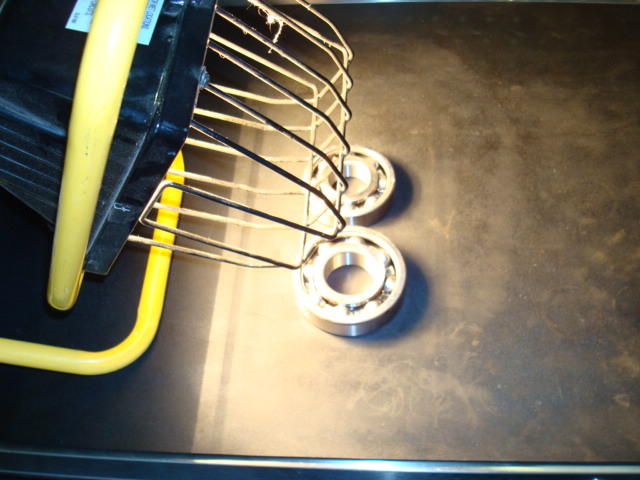

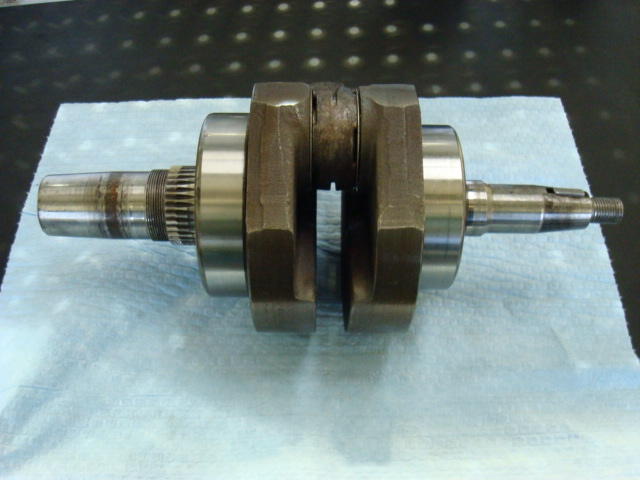

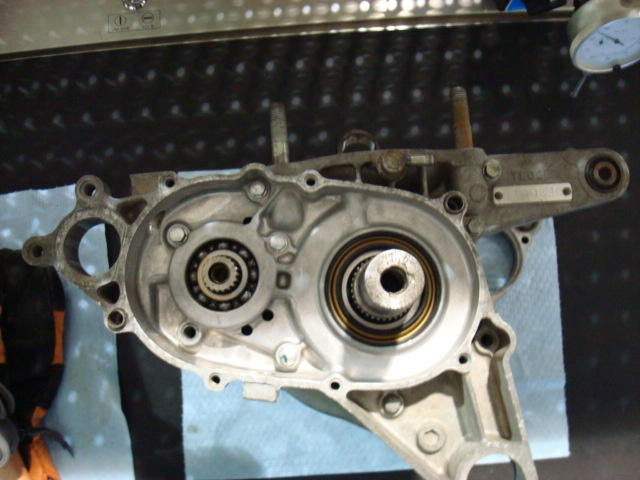

Now you should have both bearings on the crank.

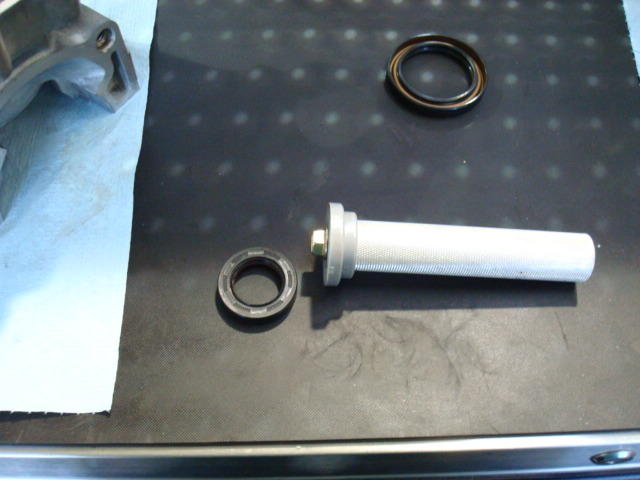

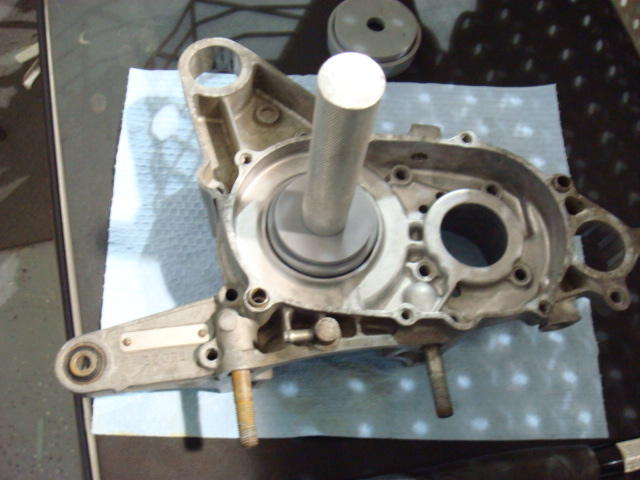

Choose the driver that is just a bit smaller than the opening

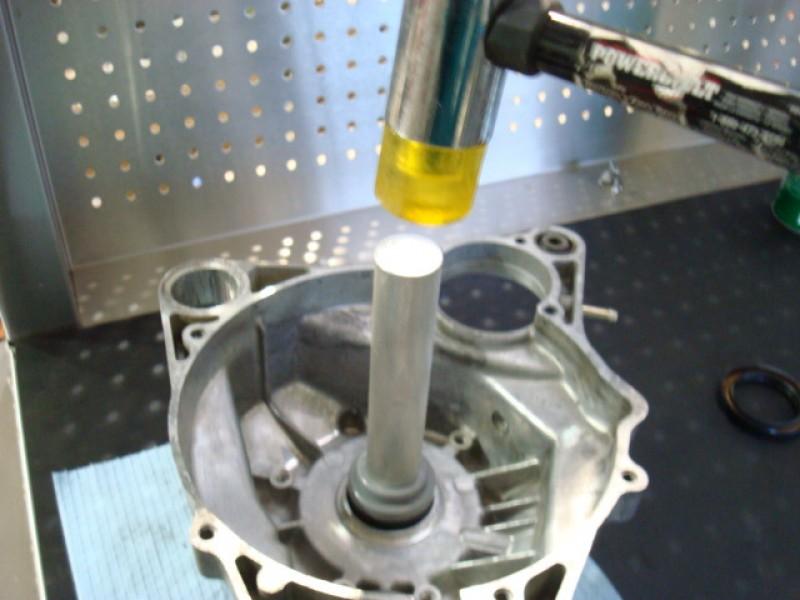

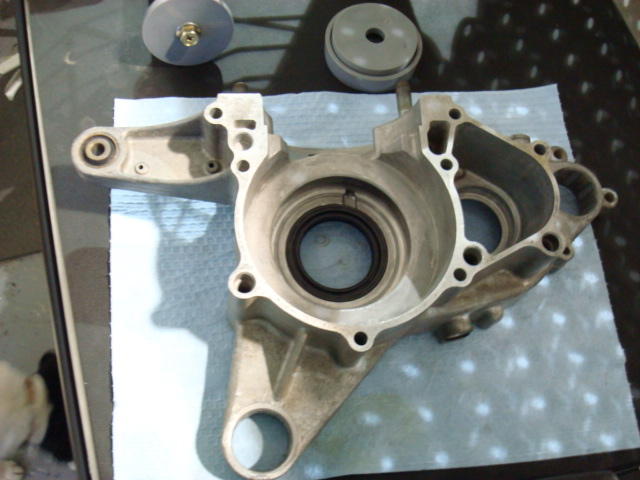

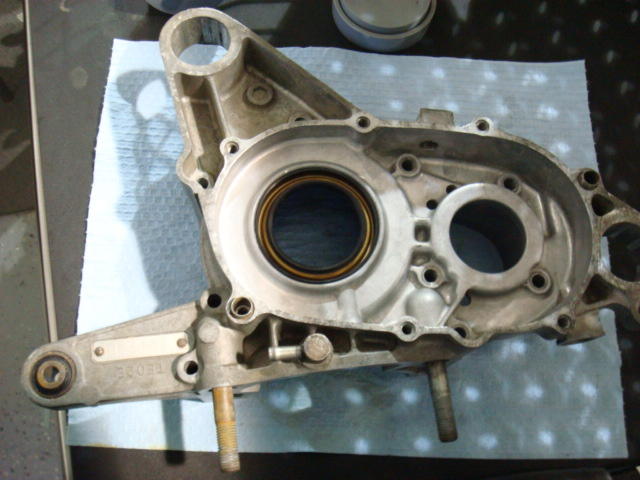

Next use the seal driver and gently tap the seals into the side of cases. I tap them in dry. The times that I have lubed them, I could push them all of the way through with finger pressure. So I don't do that any more.

Next take the deeper of the two case halves and put it in the oven set at 250 degrees. The halogen light will not get the cases hot enough so you have to use the oven. It is best to do this when your wife is not home. But if you have done a good job of cleaning your parts then is should not be a big deal if you get caught. After it is hot just place the crank, bearing and all in place. It will fit right in. No tapping or banging required. Also while the case is still hot place the balance bearing into its hole. The one is a bit trickier since it is small and recessed deeper in the case and the case is hot. Use gloves and be careful.

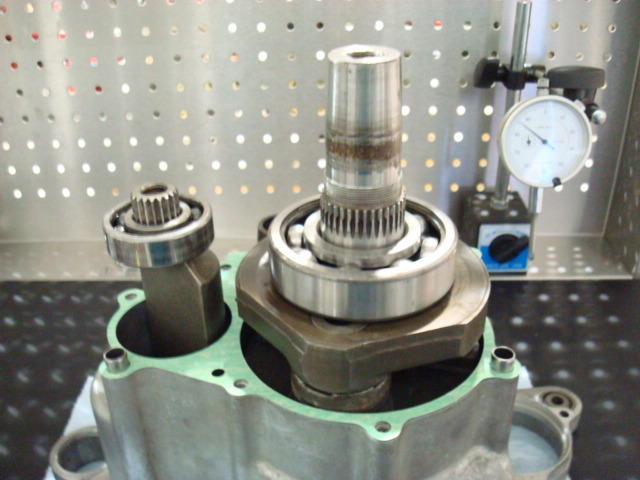

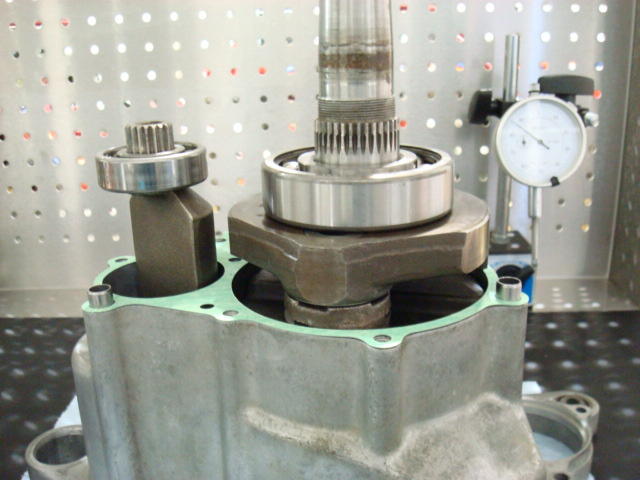

Now once the case half and the bearing temperature has equalized, drop the balancer in place. Now heat the other balancer bearing under the halogen light then put it on the exposed side if the balancer. Also at this time it is a good idea to put in the dowel pins and then set the case gasket in place.

Tap the other case seal in place and then put this case in the oven again at 250-275 degrees.

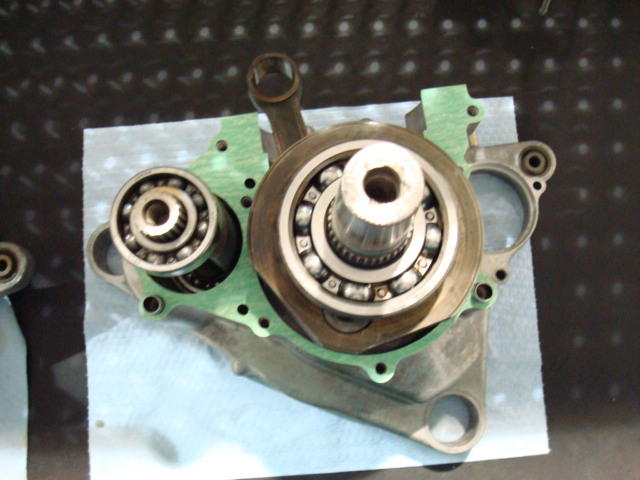

When this side heats up put on some good gloves and place it on the case and crank assembly. It too will go right on without banging but since you have to align both the crank bearing and the balancer bearing you will need to gently work it into place with your hand pressure. A little back and forth pressure pressing down will get it done.

There are nine bolts that hold the two case halves together. Seven are 65mm long and two are 70mm long. The two 70mm go in the same homes as where the dowel pins went.

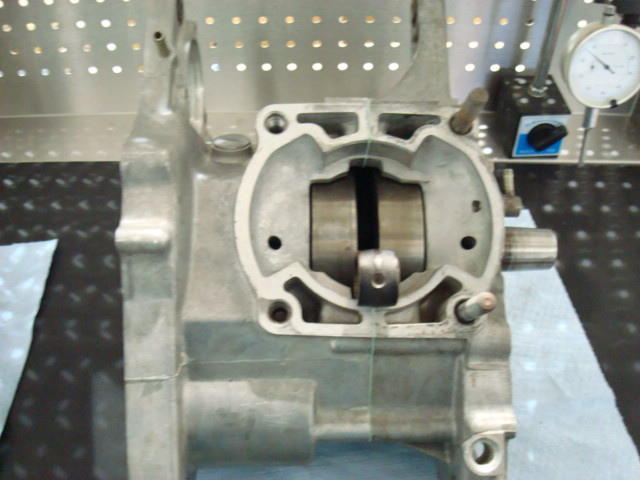

Torque to specs and the bulk of the work is done. Next weekend I will finish the accessories and then the top end when I get it back from Hoser
