Hello All I Thought I would do a easy front J arms replacement
this weekend. Well that didn't happen
I opened a can of worms It started out both tie rod are bent the replacement J arm bushings weren't to
my spec. and the cross bar is all bent up. So this is where my weekend started. Well time to do some ((( Hacking )))

Thank for Looking
SpeedChaser


Attachments:

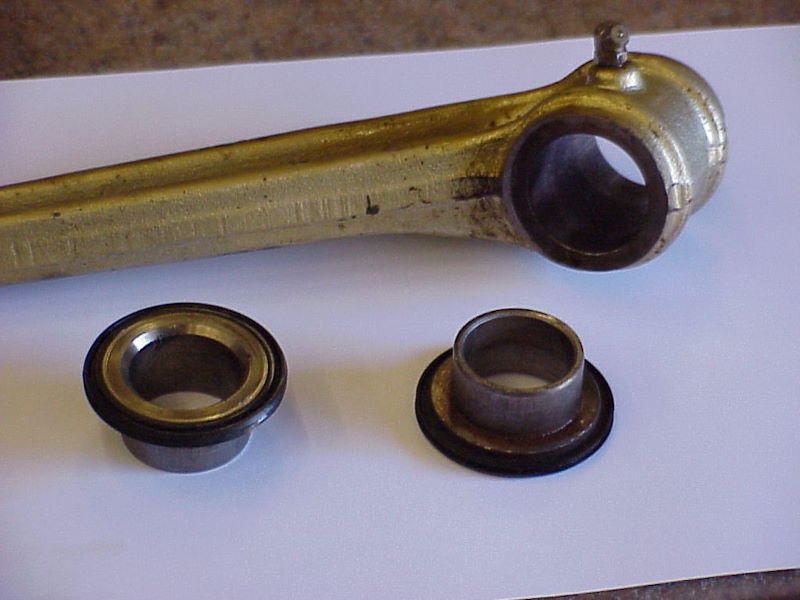

File comment: J arm bushing not to Spec
time to make some new

MVC-826X.JPG [ 57.14 KiB | Viewed 3214 times ]

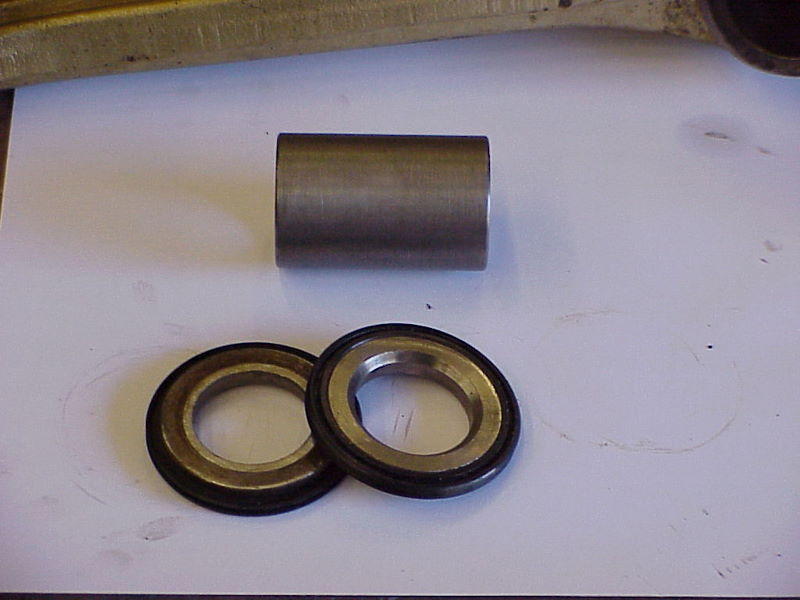

File comment: made some up out of 1" black pipe
one piece and cut the head of the stock bushing so it will still seal on ends

MVC-828X.JPG [ 48.38 KiB | Viewed 3214 times ]

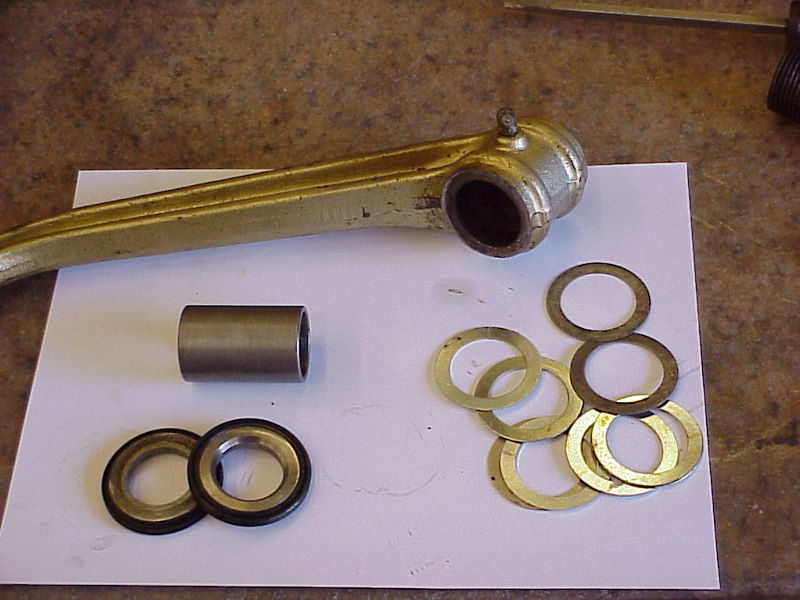

File comment: grabbed some Dana 44 pinion shims
so i can tighten up the side play

MVC-829X.JPG [ 79.73 KiB | Viewed 3214 times ]
File comment: Close up end up Adding .010 on each j-arm this made a big difference on the slop
MVC-830X.JPG [ 71.05 KiB | Viewed 3214 times ]

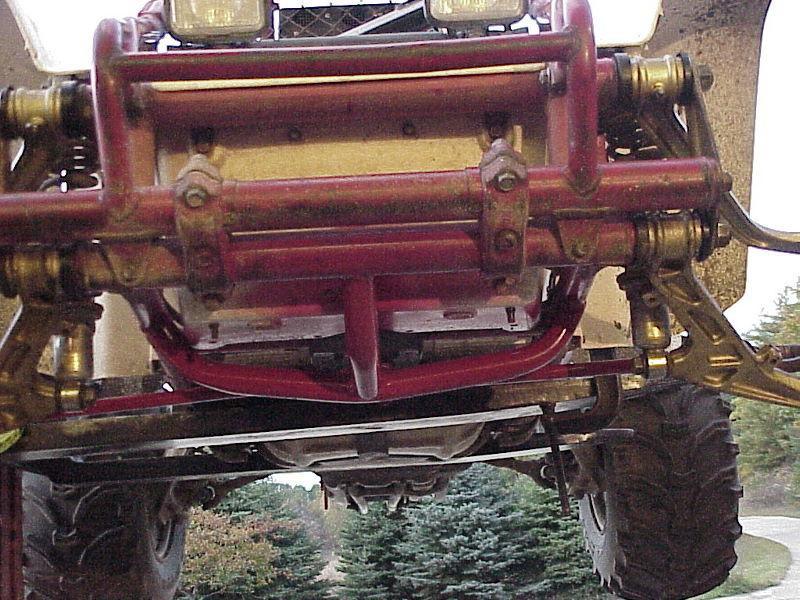

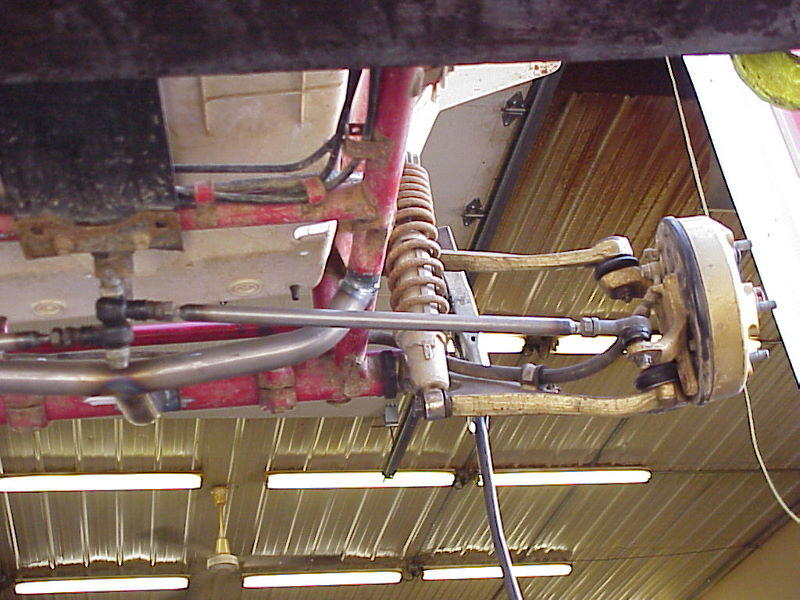

File comment: The beat up cross bar
MVC-832X.JPG [ 91.43 KiB | Viewed 3214 times ]
File comment: Next view
MVC-834X.JPG [ 73.44 KiB | Viewed 3214 times ]
Top
 Profile

 Post subject:
PostPosted: Sun Oct 12, 2008 8:57 pm
Offline

Joined: Sat Jun 30, 2007 7:45 am
Posts: 1013
Location: hole above ground
Next


Attachments:

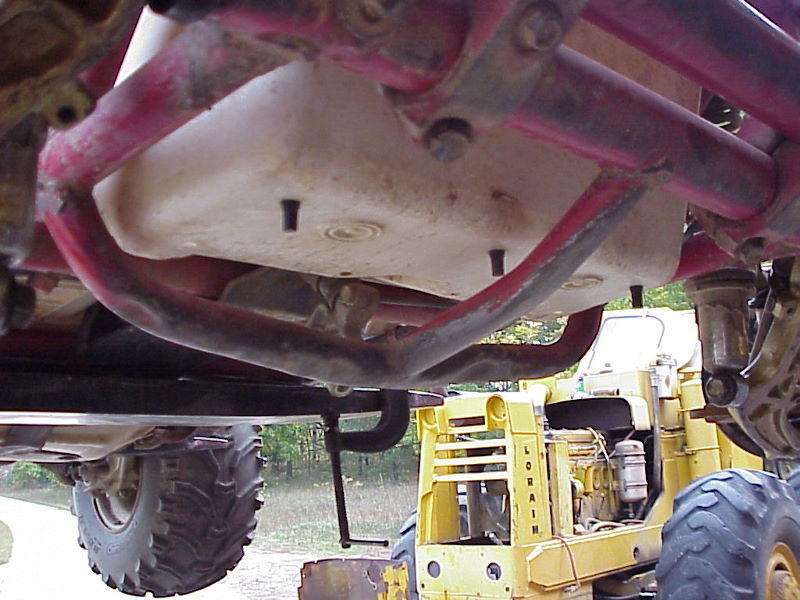

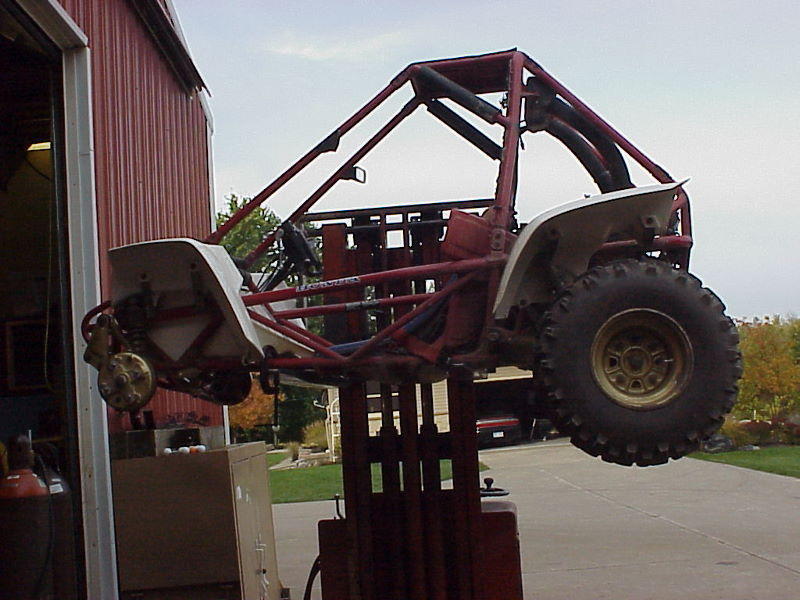

File comment: Hi low work good for a lift
MVC-835X.JPG [ 80.95 KiB | Viewed 3210 times ]

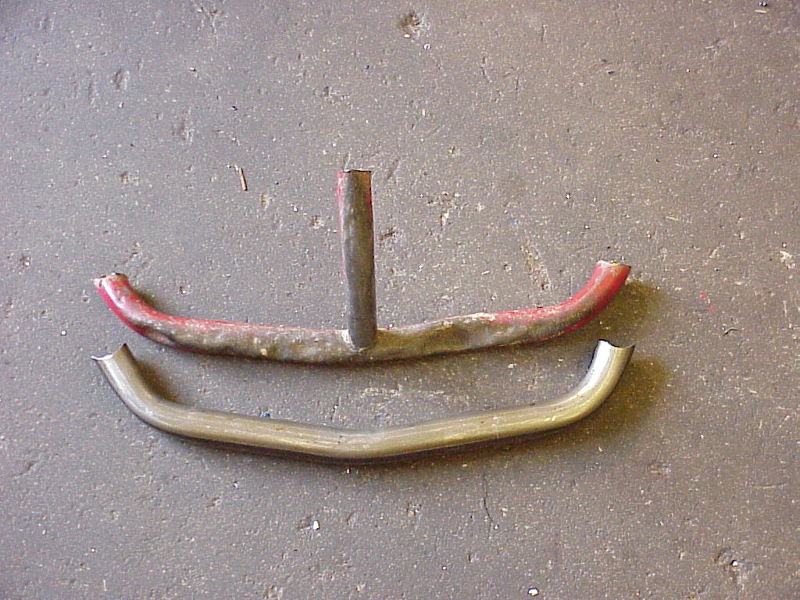

File comment: Time to bend up some tube
Went with 1-1/4" instead of the 1-1/8"

MVC-843X.JPG [ 115.9 KiB | Viewed 3210 times ]

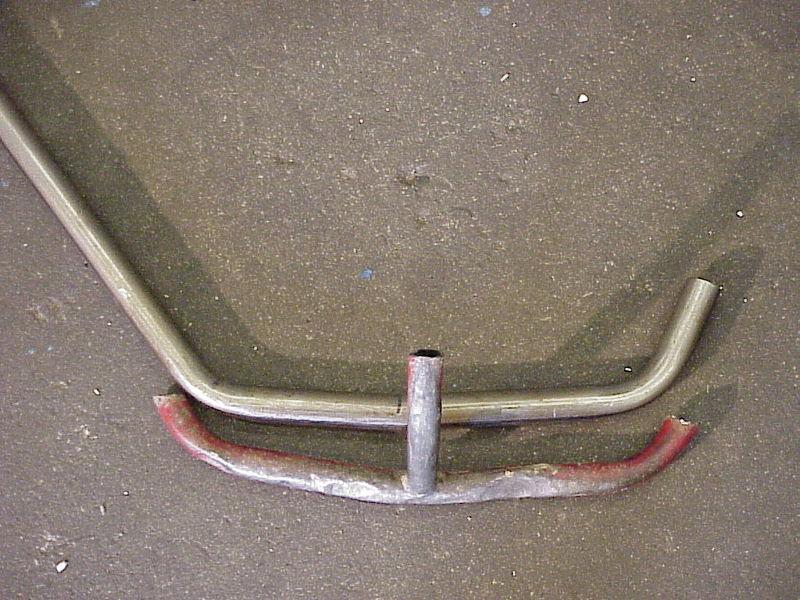

File comment: Cut to length and coped
MVC-844X.JPG [ 111.59 KiB | Viewed 3210 times ]
File comment: tacked into place
MVC-846X.JPG [ 88.43 KiB | Viewed 3210 times ]
File comment: fitted center tube
MVC-847X.JPG [ 99.49 KiB | Viewed 3210 times ]
File comment: All welded in
MVC-850X.JPG [ 76.8 KiB | Viewed 3210 times ]
Top
 Profile

 Post subject:
PostPosted: Sun Oct 12, 2008 9:05 pm
Offline

Joined: Sat Jun 30, 2007 7:45 am
Posts: 1013
Location: hole above ground
Well that it for now it should ride and steer like new


Thanks For looking
SpeedChaser


Attachments:
File comment: tie rods installed
MVC-851X.JPG [ 98.81 KiB | Viewed 3208 times ]
File comment: next
MVC-852X.JPG [ 106.85 KiB | Viewed 3208 times ]
File comment: next
MVC-853X.JPG [ 76.75 KiB | Viewed 3208 times ]
File comment: Time for spray primer
MVC-855X.JPG [ 105.17 KiB | Viewed 3208 times ]
File comment: And slap some paint on
not for show

MVC-856X.JPG [ 124.79 KiB | Viewed 2935 times ]
Top
 Profile

 Post subject:
PostPosted: Sun Oct 12, 2008 9:30 pm
Offline

Joined: Sat Aug 12, 2006 9:02 pm
Posts: 533
Location: Bellevue WA I OWE Hoser $300.00
Its the newest looking part on the whole machine, haha Good job! looks very nice.

Thanks for the head too =) Just wish the mailman didnt cram it into my mailbox so much that it broke the mailbox, haha


Top
 Profile

 Post subject:
PostPosted: Mon Oct 13, 2008 6:39 am
Offline

Joined: Mon Dec 15, 2003 2:40 pm
Posts: 22102
Location: Chicago
Nice work.

Looks like a good place for a skid plate?


Top
 Profile E-mail

 Post subject:
PostPosted: Mon Oct 13, 2008 5:35 pm
Offline

Joined: Tue Dec 23, 2003 10:31 pm
Posts: 5508
Location: New Jersey
Any thoughts on the J-arms replacement tie rod ends Speed?That would be sweet indeed!!


Top
 Profile E-mail

 Post subject:
PostPosted: Mon Oct 13, 2008 8:37 pm
Offline

Joined: Fri Jan 12, 2007 2:17 pm
Posts: 2839
Location: Wichita ks
Nice Hacking or sholud we call it skilled hacking, back yard is alread taken. That fix it kit will help a lot of fl350 owners. Man, I bet you have fun working on bikes. Does you head hurt any from all those ideas. Nice work.


Top
 Profile

 Post subject:
PostPosted: Mon Oct 13, 2008 9:35 pm
Offline

Joined: Sun Apr 27, 2008 5:36 am
Posts: 1345
Location: Benson, NC
Nice work, what type of welder did you use to repair the frame? I need to pick one up that can handle an ody frame.


Top
 Profile

 Post subject:
PostPosted: Wed Oct 15, 2008 9:35 pm
Offline

Joined: Tue Dec 23, 2003 10:31 pm
Posts: 5508
Location: New Jersey
Speed, do you have the tie rods mounted correctly-doesnt 1 mount from underneath and 1 side from the top?


Top
 Profile E-mail

 Post subject:
PostPosted: Mon Oct 20, 2008 6:59 pm
Offline

Joined: Sat Jun 30, 2007 7:45 am
Posts: 1013
Location: hole above ground
Mudbogger wrote:
Speed, do you have the tie rods mounted correctly-doesn't 1 mount from underneath and 1 side from the top?


Well I did have it wrong but the outer the manual doesn't show it on the left side well

any way the steering wheel bushings where whore out
so I had to make some new
Made them out of bronze and added grease zerts
thanks for looking
Speed


Attachments:
File comment: Old and new bushings and shaft
MVC-858X.JPG [ 93.81 KiB | Viewed 3084 times ]
File comment: steering wheel end with zert

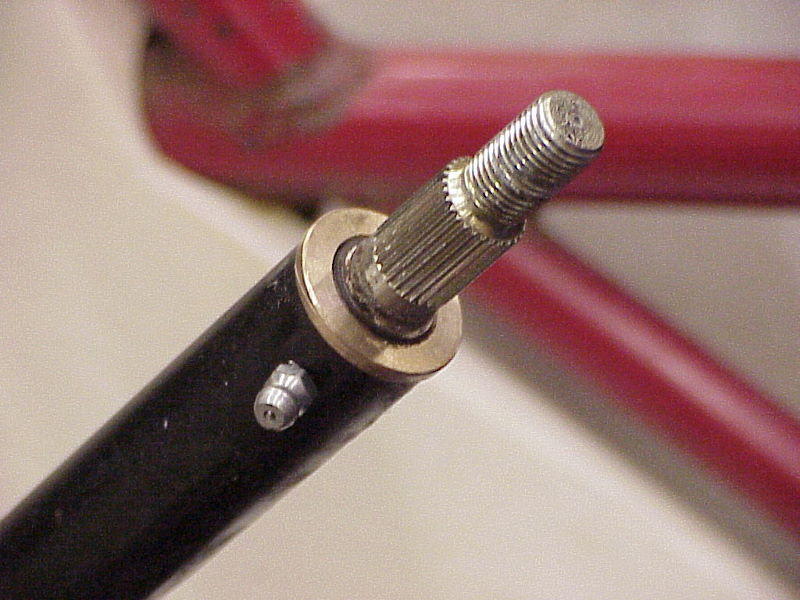

MVC-859X.JPG [ 63.88 KiB | Viewed 3084 times ]
File comment: with shaft in
MVC-860X.JPG [ 79.58 KiB | Viewed 3084 times ]

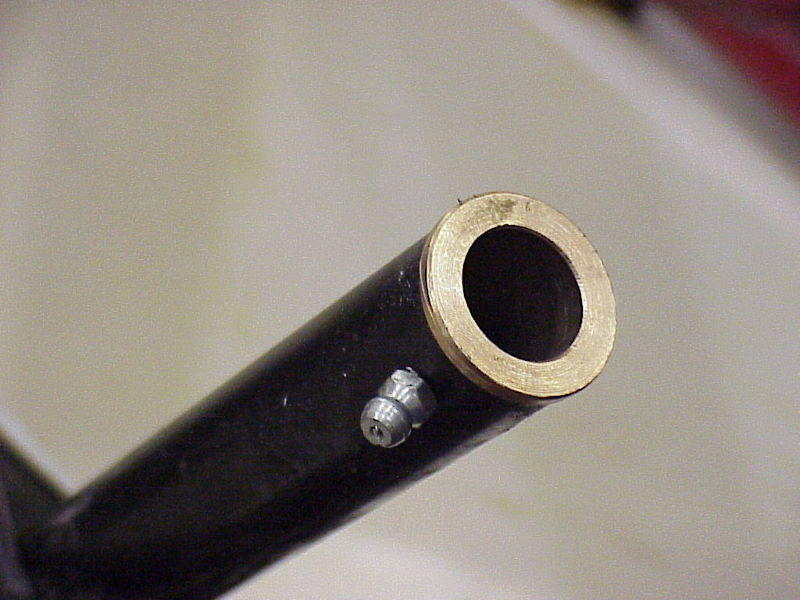

File comment: other end pivot with zert
MVC-862X.JPG [ 54.03 KiB | Viewed 3084 times ]
Top
 Profile

 Post subject:
PostPosted: Mon Oct 20, 2008 11:15 pm
Offline

Joined: Mon Oct 08, 2007 12:39 am
Posts: 3161
Location: Oklahoma City, OK
Good place for a zert, man now I have another project times 2


Top
 Profile E-mail

PostPosted: Sun Mar 06, 2011 3:56 pm
Offline

Joined: Tue Dec 23, 2003 10:31 pm
Posts: 5508
Location: New Jersey
Speed, do you have any of these bushing left over by chance? I could use 4 of them.


Top
 Profile E-mail

PostPosted: Sun Mar 06, 2011 6:07 pm
Offline

Joined: Sat Jun 30, 2007 7:45 am
Posts: 1013
Location: hole above ground
Mudbogger wrote:
Speed, do you have any of these bushing left over by chance? I could use 4 of them.


4 bushings

or 4 sets ?

Speed


Top
 Profile

PostPosted: Sun Mar 06, 2011 7:56 pm
Offline

Joined: Tue Dec 23, 2003 10:31 pm
Posts: 5508
Location: New Jersey
speedchaser wrote:
Mudbogger wrote:
Speed, do you have any of these bushing left over by chance? I could use 4 of them.


4 bushings

or 4 sets ?

Speed


4 of the steering wheel bushings. They mount in the steering shaft column.I have 2 sets of the j-arm bushing kits already. :-)


Top
 Profile E-mail

PostPosted: Sun Mar 06, 2011 8:19 pm
Offline

Joined: Sat Jun 30, 2007 7:45 am
Posts: 1013
Location: hole above ground
Mudbogger wrote:
speedchaser wrote:
Mudbogger wrote:
Speed, do you have any of these bushing left over by chance? I could use 4 of them.


4 bushings

or 4 sets ?

Speed


4 of the steering wheel bushings. They mount in the steering shaft column.I have 2 sets of the j-arm bushing kits already. :-)



No that was a one time thing at the time you think there is a need for them in a kit form ?

Honda make stock ones still ?

I will look in to it Monday

speedchaser
Wow Thanks Hoser for the sub forum just noticed that :-)


Top
 Profile

PostPosted: Sun Mar 06, 2011 8:43 pm
Offline

Joined: Tue Dec 23, 2003 10:31 pm
Posts: 5508
Location: New Jersey
I think they have been discontinued for sometime Speedchaser---but I might be wrong.


Top
 Profile E-mail

PostPosted: Sun Jan 31, 2016 12:17 am
Offline

Joined: Thu Dec 11, 2014 8:23 am
Posts: 233
Location: Newport Mi
Mudbogger wrote:
I think they have been discontinued for sometime Speedchaser---but I might be wrong.
